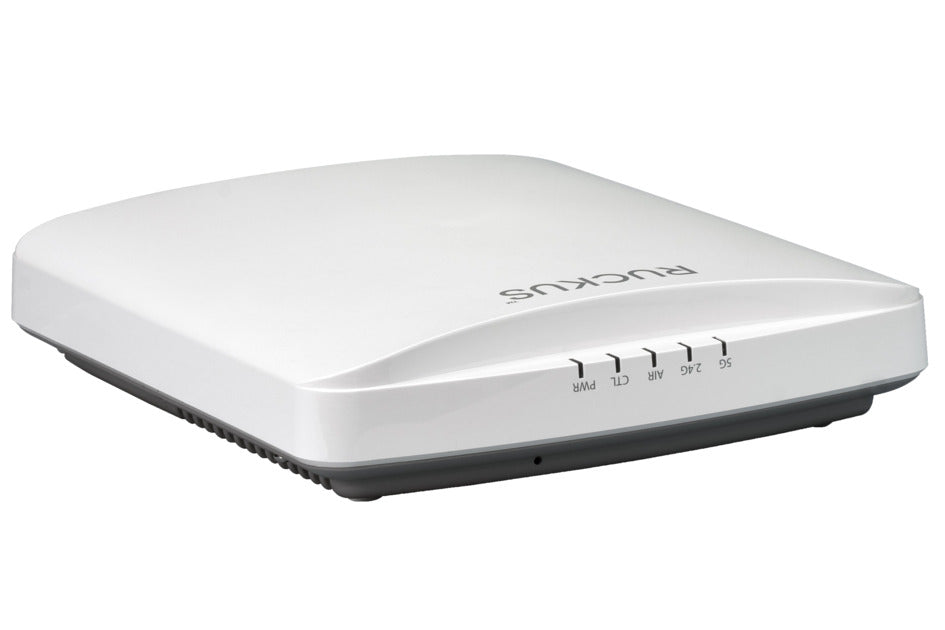

901-R650-US00 Ruckus ZoneFlex R650 WiFi6 Access Point

RUCKUS R650 Indoor Wi-Fi 6 Access Point (901-R650-US00)

The RUCKUS R650 (SKU: 901-R650-US00) is a mid-range, dual-band Wi-Fi 6 (802.11ax) access point designed for high-density indoor environments like classrooms, offices, and retail spaces. It supports six spatial streams-4x4:4 MU-MIMO on 5 GHz and 2x2:2 on 2.4 GHz-delivering up to 2974 Mbps aggregate throughput and supporting up to 512 concurrent clients.

With BeamFlex+ adaptive antenna technology, the R650 dynamically optimizes signal paths to reduce interference and improve coverage. It also features ChannelFly® for predictive channel selection and a 2.5GbE uplink port, ensuring the wired backhaul keeps pace with wireless capacity.

Key Features:

• Dual-band Wi-Fi 6 (802.11ax), 4x4:4 on 5 GHz, 2x2:2 on 2.4 GHz
• Up to 2974 Mbps aggregate throughput
• 1x 2.5GbE uplink + 1x 1GbE port
• BeamFlex+ with up to 64 antenna patterns
• ChannelFly® for dynamic channel optimization
• Supports up to 512 concurrent clients
• Embedded IoT support (BLE, Zigbee via USB)
• PoE+ (802.3at) powered; optional DC adapter
• Compatible with RUCKUS Cloud, SmartZone, and ZoneDirector

Use Cases:

• High-density enterprise environments
• Classrooms, lecture halls, and retail venues
• IoT-ready deployments with BLE/Zigbee integration
