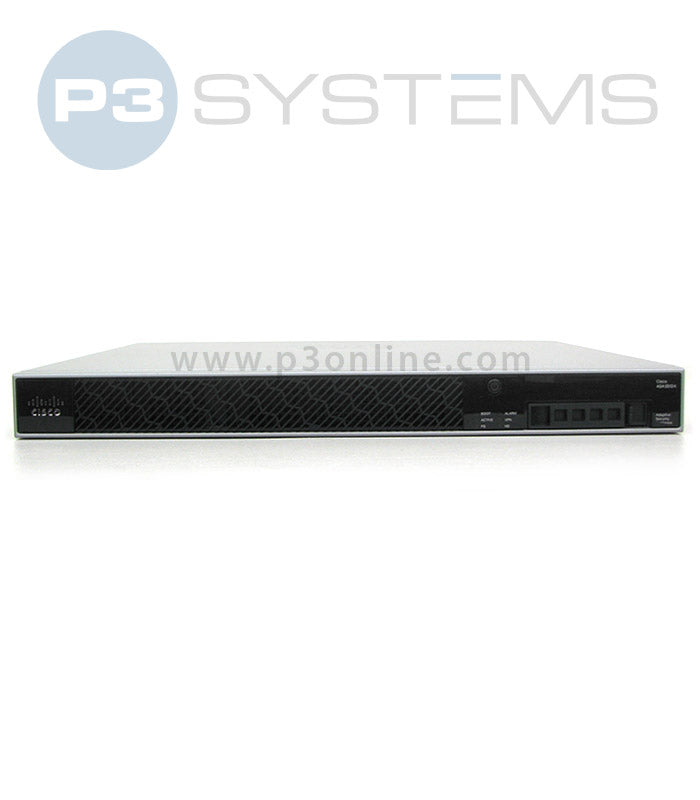

ASA5512-IPS-K9 Firewal with IPS Services and 3DES/AES encryption.

Cisco ASA5512-IPS-K9 - ASA 5512-X with IPS Services

The ASA5512-IPS-K9 combines the capabilities of the ASA 5512-X firewall with integrated IPS functionality, offering stateful firewall protection, VPN support, and real-time threat detection. It’s ideal for organizations that need robust perimeter security with advanced inspection capabilities.

🔧 Key Specifications

• Firewall Throughput: Up to 1 Gbps
• VPN Throughput: Up to 200 Mbps (3DES/AES)
• IPsec VPN Peers: Up to 250
• SSL VPN Peers: 2 (expandable)
• Interfaces: 6x Gigabit Ethernet data ports, 1x Gigabit Ethernet management port
• VLANs: Supports 50 VLANs (expandable to 100 with Security Plus license)
• Memory: 4 GB RAM, 4 GB Flash
• Form Factor: 1RU rack-mountable
• Dimensions: 42.9 x 39.5 x 4.24 cm
• Weight: Approx. 13.1 kg
• Power Supply: 1x AC included
• Encryption: Includes 3DES/AES license
• IPS Functionality: Bundled with Cisco IPS software for deep packet inspection and threat prevention

🧩 Ideal Use Cases

• Midsize enterprise edge security
• Branch office perimeter protection
• VPN gateway with integrated threat detection
• Environments requiring compliance and intrusion prevention

⚙️ Licensing & Expansion
Can be upgraded with Security Plus license for high availability and additional VLANs. Supports SmartNet contracts for ongoing support and software updates.
