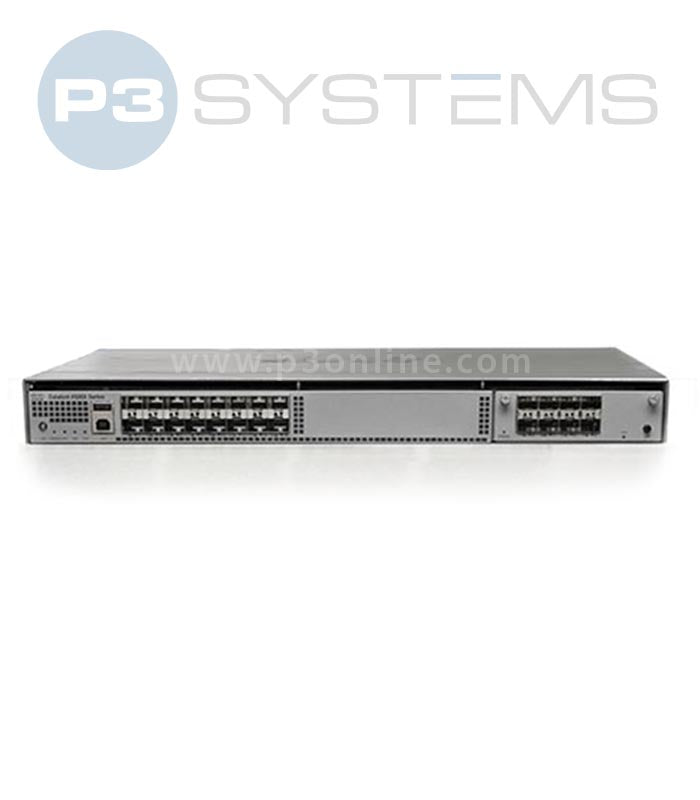

Cisco WS-C4500X-24X-IPB – Catalyst 4500-X 24-Port 10G IP Base Aggregation Switch
The Cisco WS-C4500X-24X-IPB is a high‑performance 10‑Gigabit fixed aggregation switch designed for campus core, distribution, and enterprise backbone environments. With up to 800 Gbps switching capacity in a compact 1RU chassis, it delivers exceptional scalability, resiliency, and security for modern high‑density networks. The IP Base feature set provides robust Layer 2/3 capabilities, making it ideal for organizations standardizing on reliable, scalable 10G aggregation.
🔧 Key Specifications
- Ports: 24x 10G SFP+ fixed ports
- Switching Capacity: Up to 800 Gbps
- Forwarding Rate: Up to 250 Mpps
- Airflow: Front‑to‑Back cooling
- Power: Supports dual hot‑swappable PSUs (model dependent)
- Redundancy: Hot‑swappable fan trays for high availability
- Virtual Switching System (VSS): Supported for multi‑chassis resiliency
- Layer 2/3 Features: VLANs, advanced QoS, IPv4/IPv6 routing (IP Base)
- Security: TrustSec, Flexible NetFlow, role‑based access control
- Expansion: Supports optional 8‑port uplink module (40G/100G options vary by model)
- Dimensions: 1.75 x 17.25 x 21 in. (4.4 x 43.8 x 53.3 cm) (H x W x D)
- Weight: 24 lb (10.89 kg) (with two power supplies installed)
🧩 Ideal Use Cases
-
Campus core and distribution requiring compact, high‑bandwidth 10G aggregation
-
Enterprise backbone standardizing on IP Base routing and scalable 10G connectivity
-
High‑density access layer aggregation for large campus deployments
-
Redundant network designs leveraging VSS for chassis‑class resiliency
⚙️ Licensing & Platform Features
- Runs Cisco IOS XE with modular, scalable software architecture
- IP Base license includes Layer 2/3 routing, IPv6, QoS, and security features
- Supports TrustSec, Flexible NetFlow, and advanced traffic visibility
- Designed for high‑availability deployments with redundant fans and PSU options
