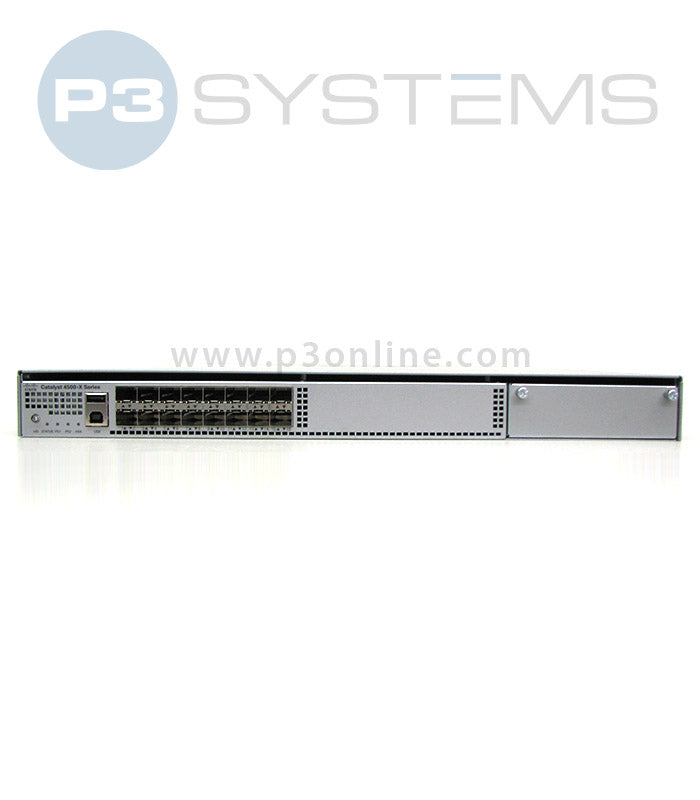

Cisco WS-C4500X-F-16SFP+ – Catalyst 4500-X 16-Port 10G Fixed Aggregation Switch
The Cisco WS-C4500X-F-16SFP+ is a compact, high‑performance 10‑Gigabit aggregation switch designed for campus and enterprise core environments. Delivering up to 800 Gbps switching capacity in a 1RU form factor, it provides exceptional scalability, redundancy, and security for modern network backbones. With fixed 10G SFP+ ports and optional uplink/expansion modules, it enables flexible, resilient aggregation for high‑density access deployments.
🔧 Key Specifications
- Ports: 16x 10G SFP+ fixed ports
- Switching Capacity: Up to 800 Gbps
- Forwarding Rate: Up to 250 Mpps
- Form Factor: 1RU fixed aggregation switch
- Redundancy: Hot‑swappable fan trays and dual power supply support
- Virtual Switching System (VSS): Supported for chassis‑class resiliency
- Layer 2/3 Features: Advanced QoS, MPLS, IPv4/IPv6 routing, TrustSec
- Security: Flexible NetFlow, MACsec (module dependent), role‑based access control
- Scalability: Supports uplink/expansion modules for 40G/100G options (model dependent)
- Dimensions: 1.75 x 17.25 x 21 in. (4.4 x 43.8 x 53.3 cm) (H x W x D)
- Weight: 23 lb (10.43 kg) (with two power supplies installed)
🧩 Ideal Use Cases
-
Campus core and distribution requiring compact, high‑bandwidth aggregation
-
Enterprise networks upgrading from legacy chassis to fixed 10G aggregation
-
High‑density access layer aggregation for large campus deployments
-
Redundant backbone designs using VSS for multi‑chassis resiliency
⚙️ Licensing & Platform Features
- Runs Cisco IOS XE with modular, scalable software architecture
- Supports TrustSec, Flexible NetFlow, advanced QoS, and comprehensive IPv6 features
- Optional uplink modules for 40G/100G expansion (depending on configuration)
- Designed for high‑availability deployments with redundant fans and PSU options
